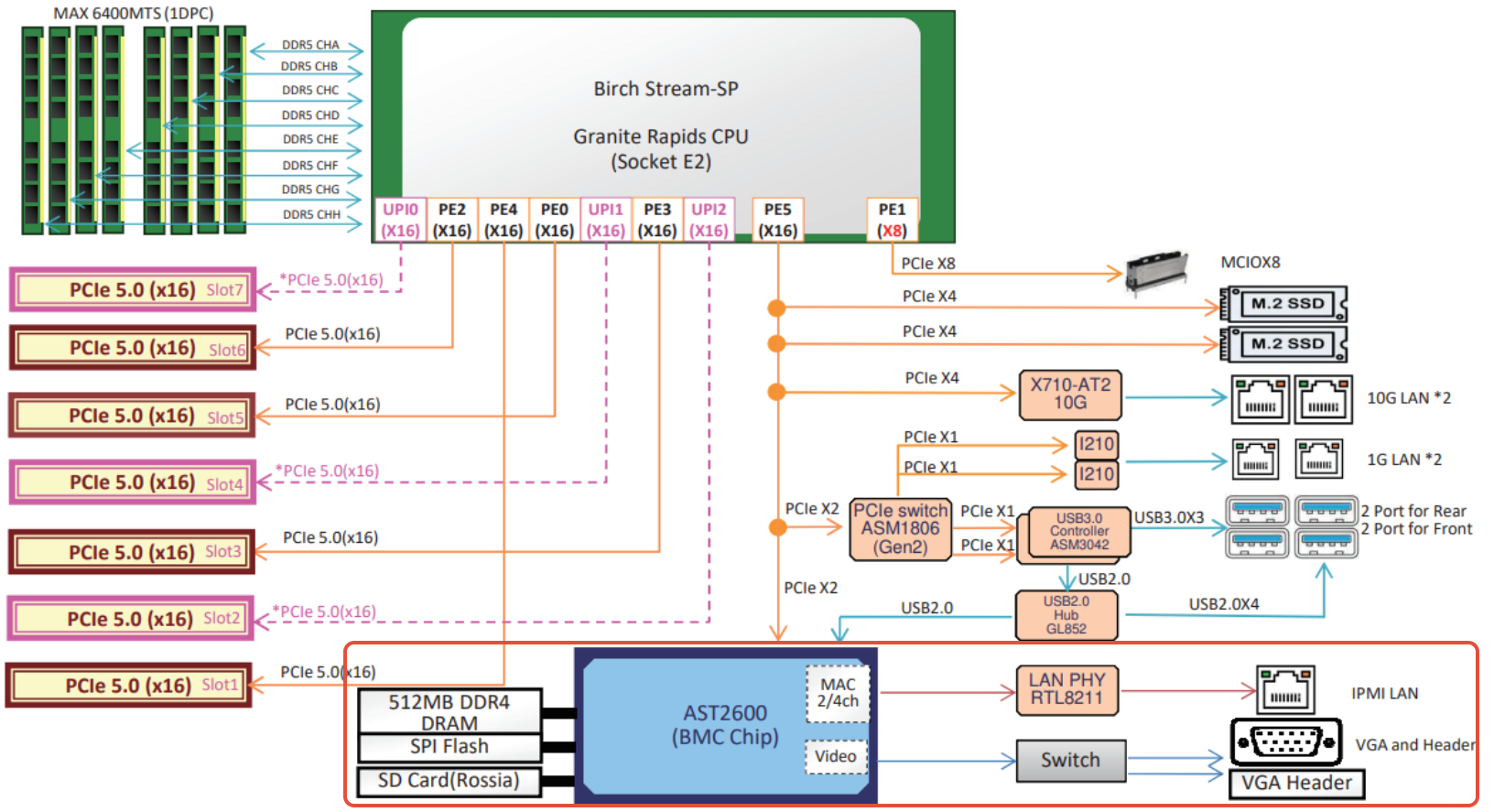

The schematic above shows the IMPI/BMC logic implemented on the motherboard. This also indicates that only the video output from the VGA connector can be forwarded to the 'remote control'.
Make sure that the following settings are configured in the BIOS.
When an additional GPU is installed in the system, the BIOS may be accessible only through a video port on the external GPU.

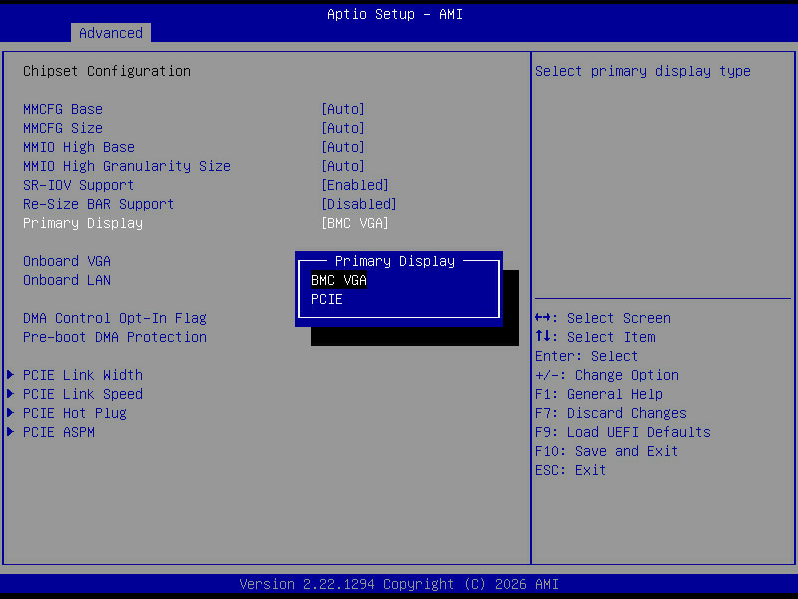

Primary display > BMC VGA

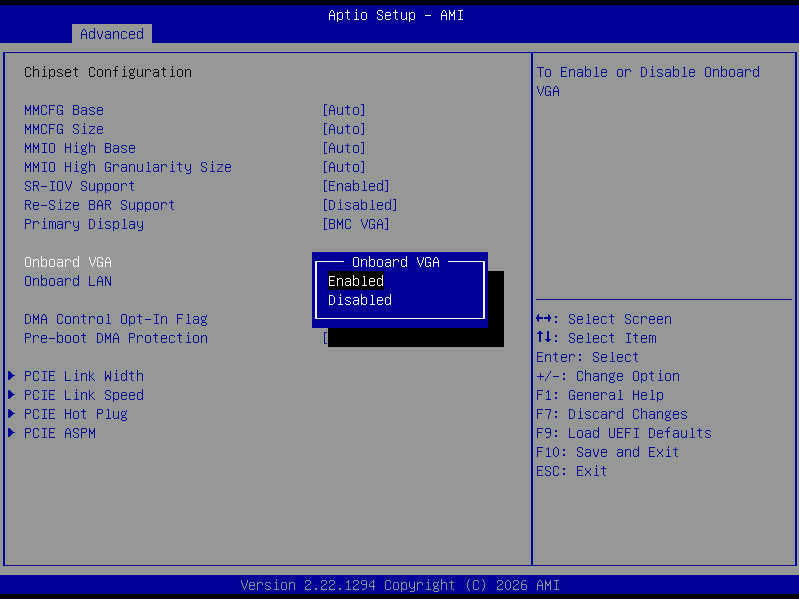

Onboard VGA > Enabled
Please note that a BIOS update may be required: BIOS update
Downloads:
- Server Management Utility : https://www.asrockrack.com/support/SMU.asp
Attachements:
- GNRD8-2L2T.pdf : Generic Baseboard Management Controller (BMC) User Guide
