Windows Performance Monitoring

If one wants to display performance values from windows in ibaPDA, one can do so via the following procedure:

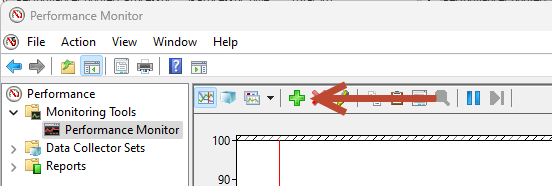

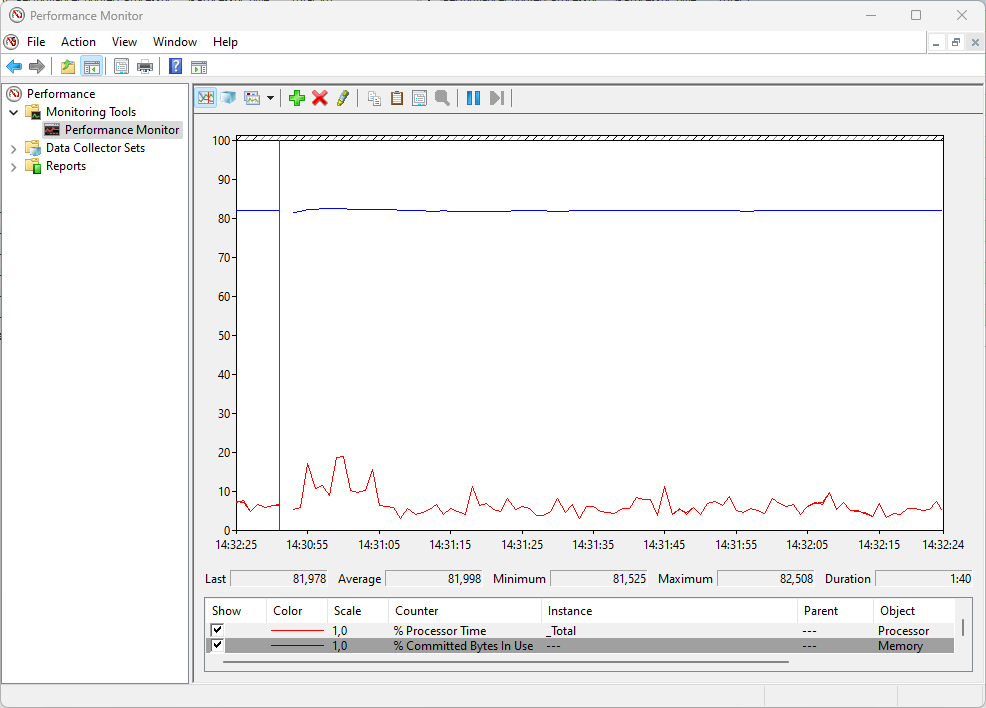

If we navigate to Performance monitor in windows via search, we come to the following image

Via performance monitor one can find all performance items of windows, all these values can also be displayed in ibaPDA.

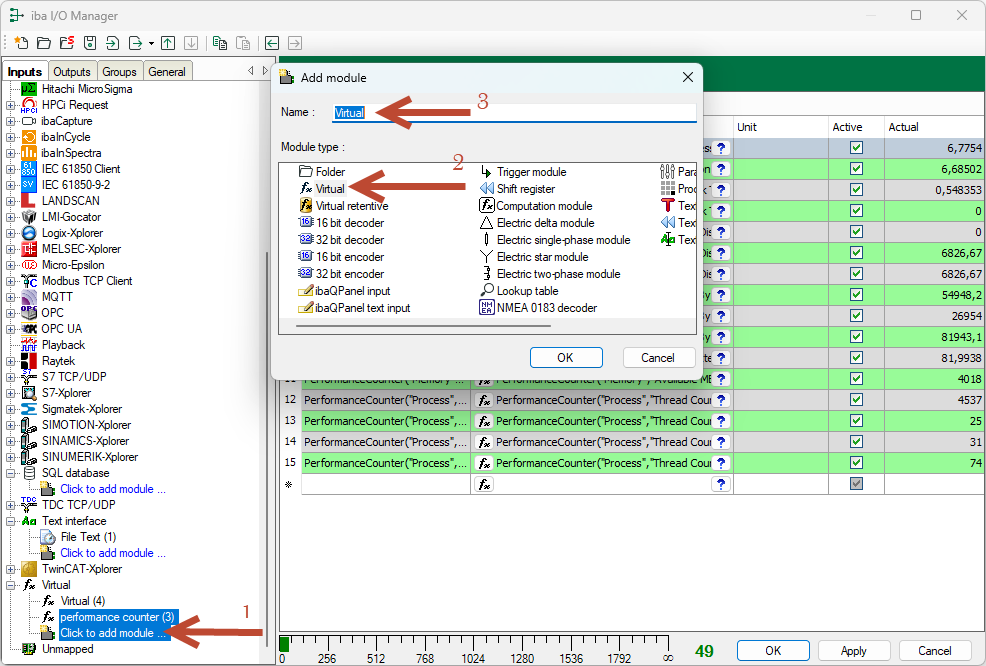

We do this by adding a virtual module in ibaPDA in the I/O Manager (Performance Counter)

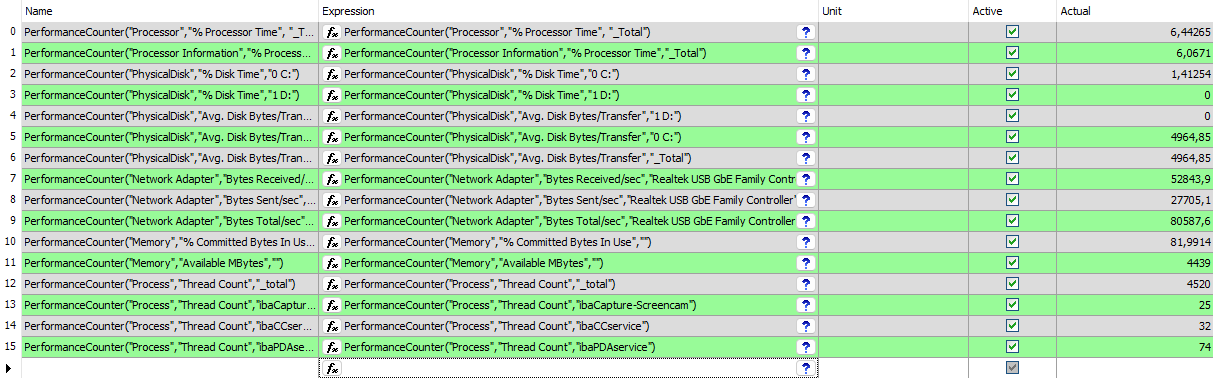

In the expression builder, we type the following:

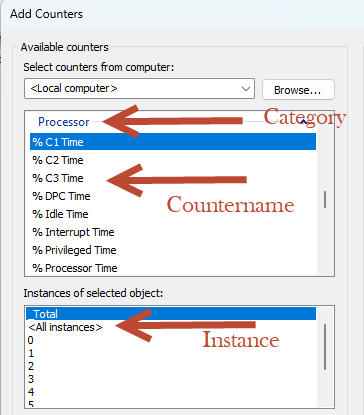

The values that should be in the expression can be found in windows' performance monitor. by adding a singal.
